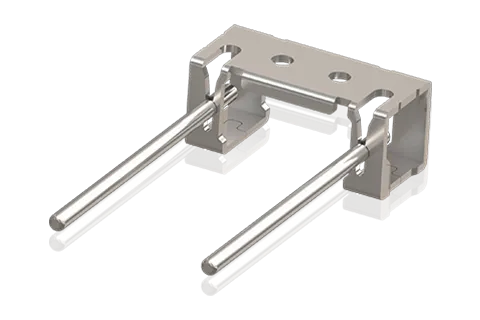

16F Guide Pin Assembly

FSG can produce quide pins of different lenaths and various loss types. The guide pin is mainly used for the guide positionina between MPO connectors, so that the optical sianal can be transmitted with a smal insertion loss. Like wise. Different guide pins and pin keeper can be customized according to customer application needs.

Pin Assembly, MM/MM LL/SM/SM LL, φ0.55mm Guide Diameter,5.30mm Pitch, 6.80*3.00*3.00mm, 11.4mm

Product Features

福可喜玛福可喜玛

Guide pins that can provide MM, MM LL, SM, SM LL accuracy

福可喜玛福可喜玛

Guide pin shape optional Fillet corner/chamfer

福可喜玛福可喜玛

Operating temperature: from -40 to +75℃, excellent environmental stability

Product Applications

福可喜玛 福可喜玛

Guided positioning between MPO connectors

福可喜玛 福可喜玛

Data center, Multimedia, Telecommunications network, Industry

Product Specifications

Type16F
Guide Pin Pitch5.3mm
Guide Pin Length11.4mm/9.88mm
Dimension6.8×3.0×3.0mm
Remark:MM:0.548±0.001,MMLL&SM:0.5485±0.0005,SMLL:0.5485±0.0001
